Diesel Fuel Oil Storage Tank (Site: the United Arab Emirates, client: N/A)

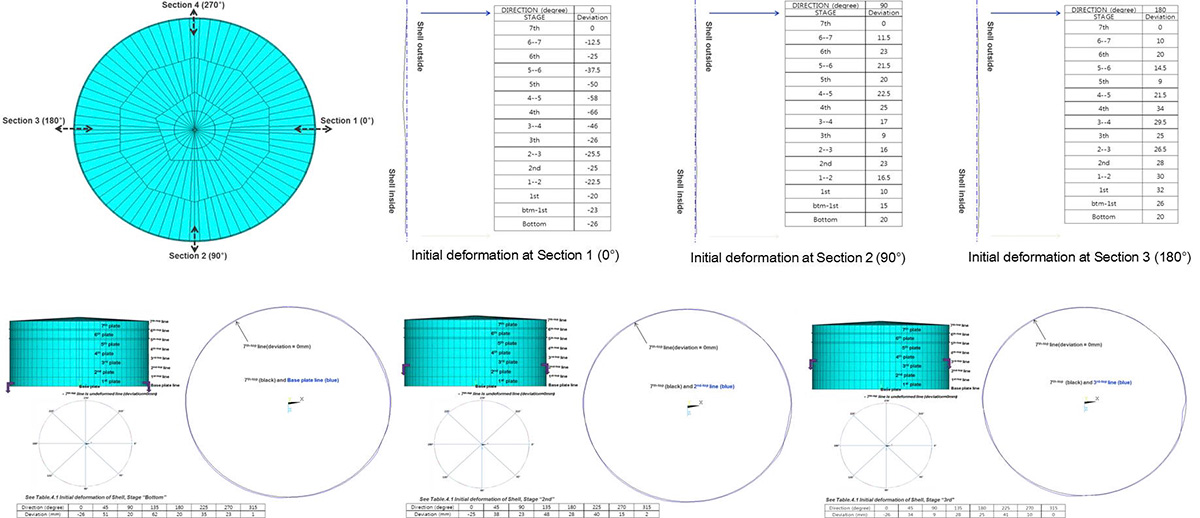

  • - There are some initial deformations in Diesel Fuel Oil Storage Tank
  • - In order to ensure the safety of this component for a specified load case, engineering evaluation of the deformed model is needed

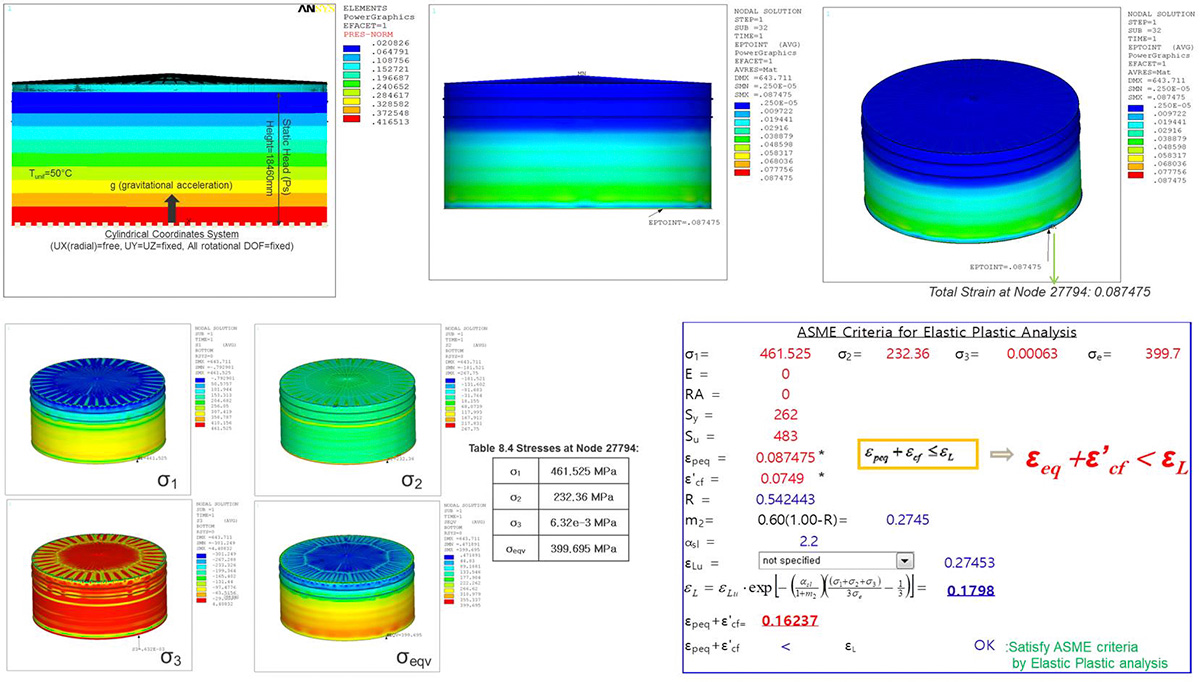

  • [FE Model for Elastic-Plastic Analysis]
    FE Model for Elastic-Plastic Analysis
  • [Analysis Results]
    Analysis Results

  • HOLD-UP Storage Tank (Site: N/A, client: N/A)

    - Roof is collapsed for any reason

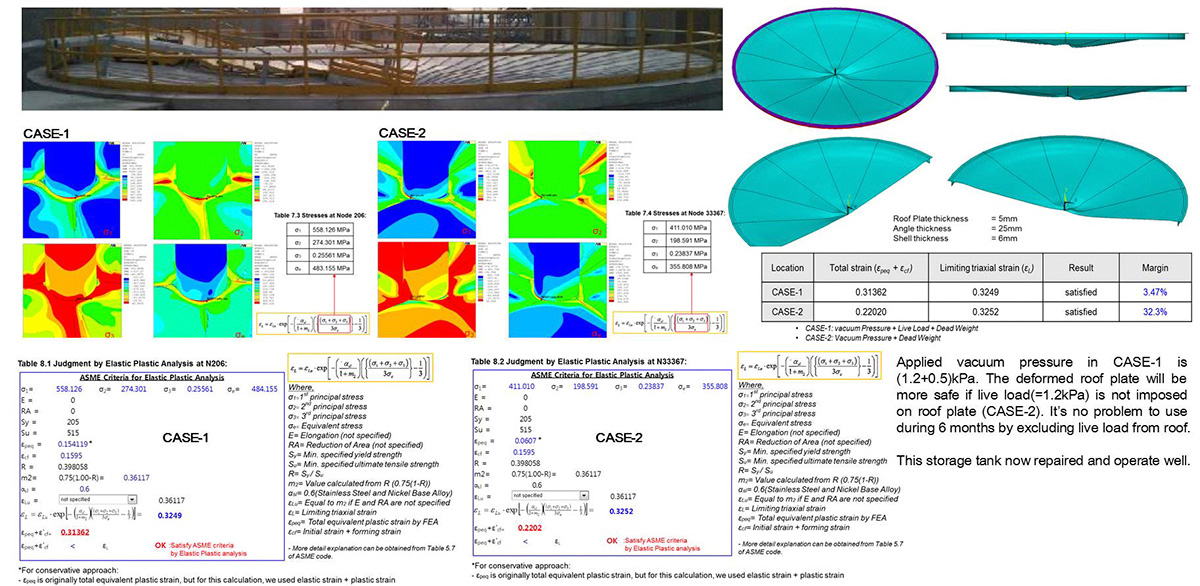

    1) CASE-A: FE Analysis carried out to verify safety of the collapsed roof plate during 6 months operating.
    2) CASE-B: FE Analysis performed to find out the reason why roof had been collapsed.

    [CASE - A]
    HOLD-UP Storage Tank (Site: N/A, client: N/A)

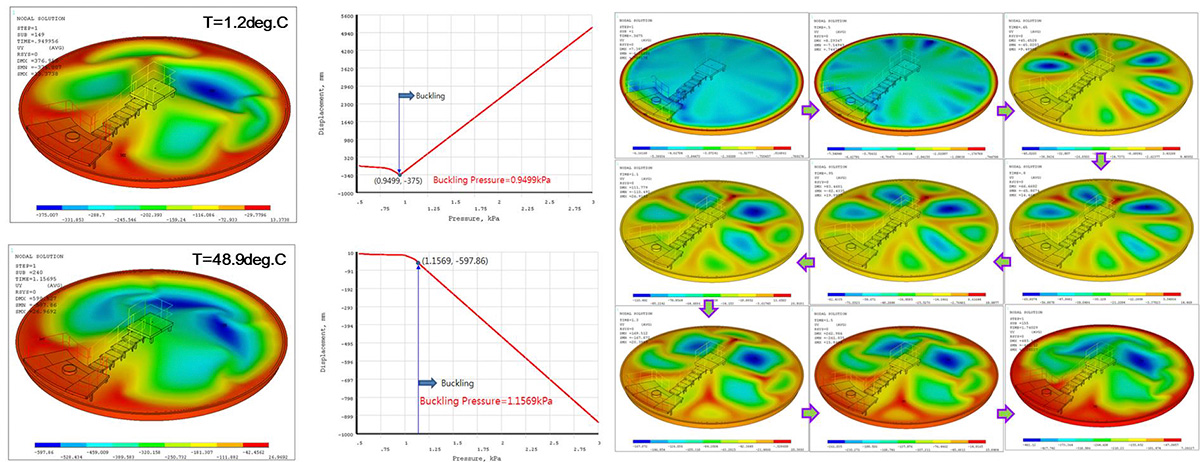

  • [CASE-B: Roof model excluded rafters]
    CASE-B: Roof model excluded rafters

    Total applied vacuum pressure in calculation is (1.2+0.5)kPa. Buckling pressure of roof plate is (0.95)kPa. Rafter is more strong than roof plate against vacuum pressure. Finally, to collapse this storage tank, vacuum pressure have to be applied at least (0.95x2)kPa. That is, calculation is no problem and very strong external pressure applied on the roof plate. To keep my promise with client, can not mention the reason why roof plate had been collapsed.

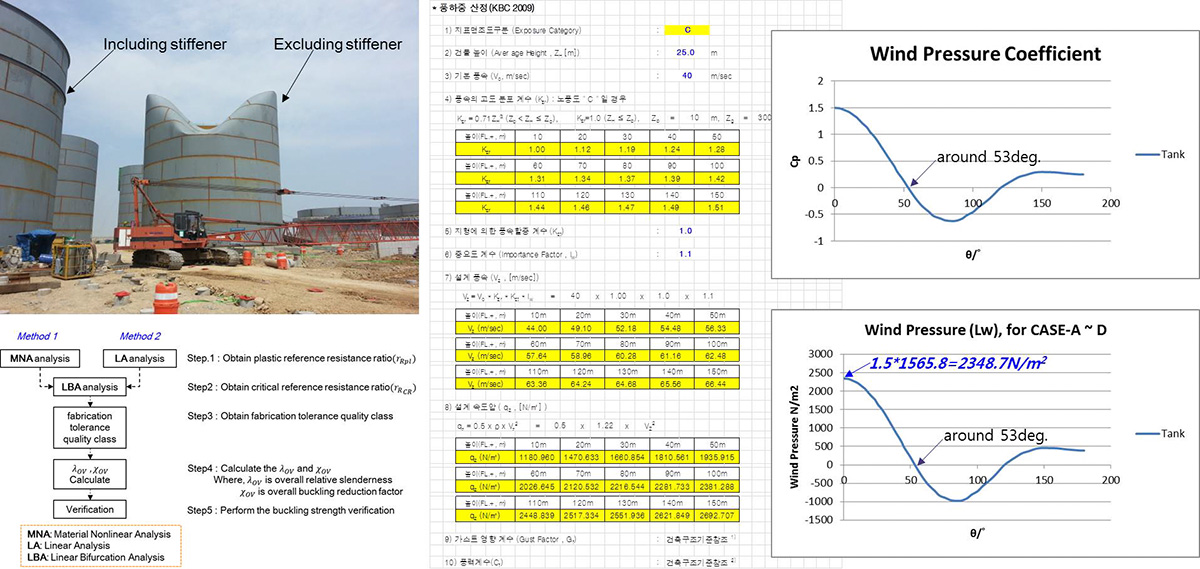

  • Shell buckling assessment for cylindrical open-topped steel tanks under strong wind
    (Site: Korea, client: N/A)

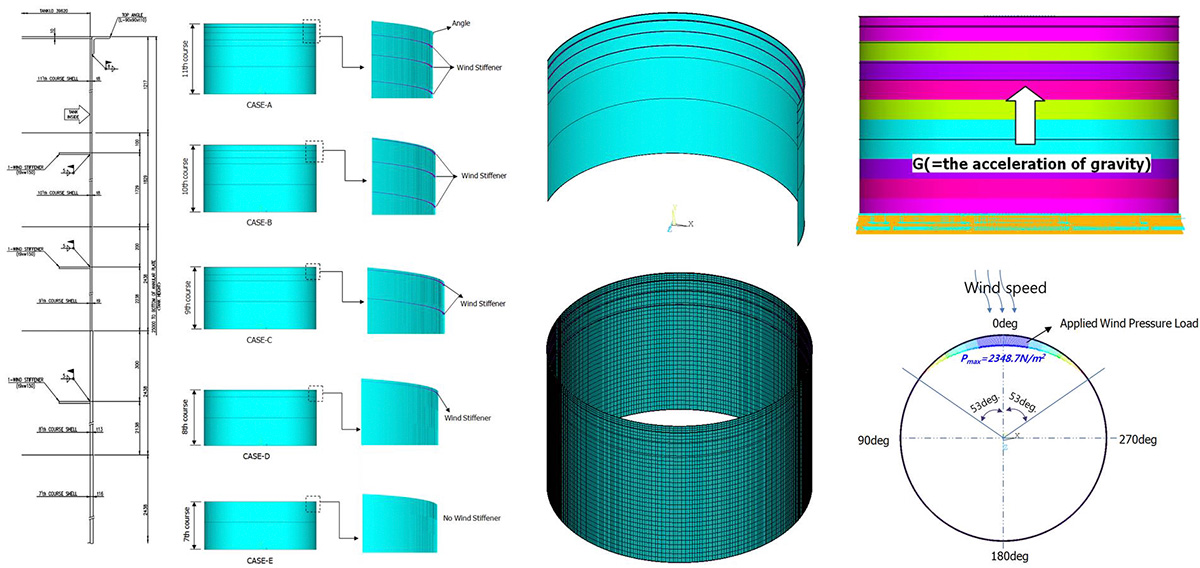

    - Buckling of tanks sometimes even occurs under wind load during their construction

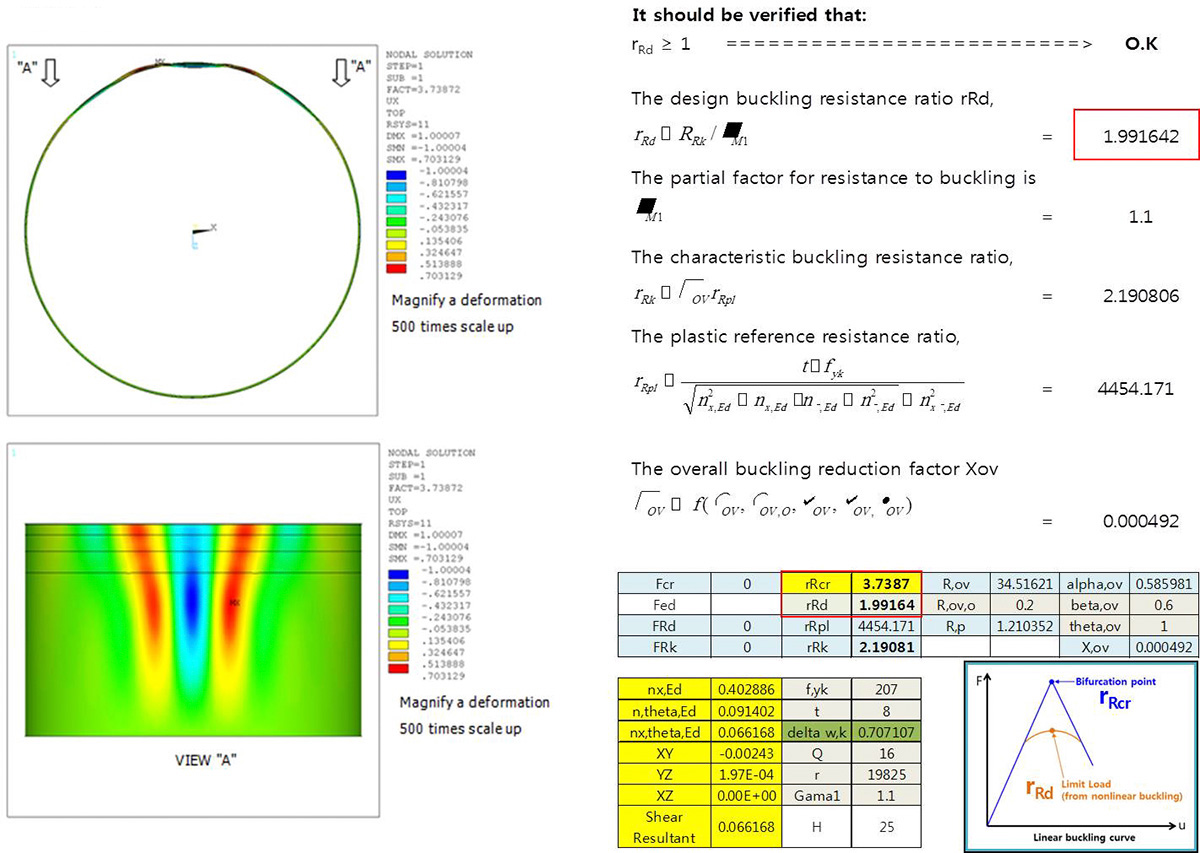

    - To evaluate protection against buckling collapse, the results from an linear elastic bifurcation analysis of thin-walled cylindrical tank are categorized and compared to an associated limiting value.

    Shell buckling assessment for cylindrical open-topped steel tanks under strong wind
  • Shell buckling assessment for cylindrical open-topped steel tanks under strong wind
  • Shell buckling assessment for cylindrical open-topped steel tanks under strong wind

  • Due to soil settlement, large deformation occurs in annular plate and shell 1ST course
    (Site: Korea, client: N/A)

    - CASE-A: Evaluate structural integrity of deformed water storage tank
    - CASE-B: Compute maximum limit for additional displacement due to soil settlement

    Due to soil settlement, large deformation occurs in annular plate and shell 1ST course (Site: Korea, client: N/A)

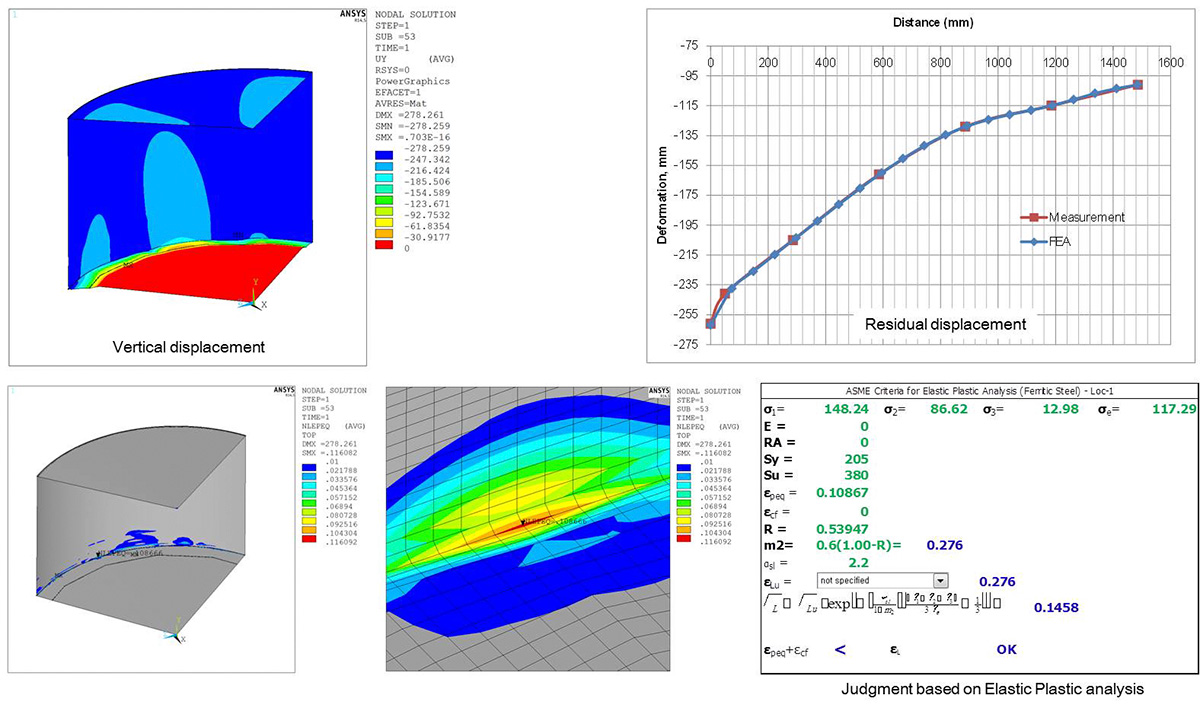

  • [CASE - A]
    Due to soil settlement, large deformation occurs in annular plate and shell 1ST course (Site: Korea, client: N/A)

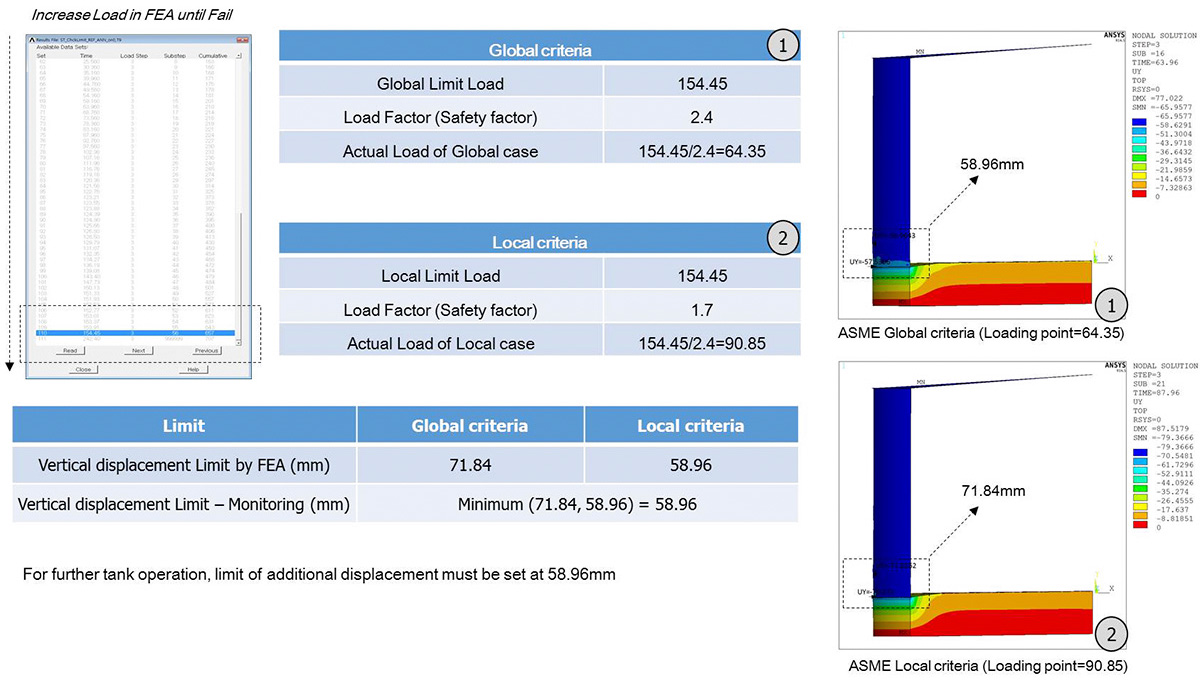

  • [CASE - B]
    increase load in fea until fail
