◌ (Example) Roof Frame Analysis (Rafter, Ring Girder, Platform) for Propane Storage Tank using STAAD Pro
첨부파일 Analysis report of Roof Frame for Propane Tank_STAAD Pro.pdf (0) Size : 4.5 Mb Date 2019.05.21 Hits 1139

(Attached file is available freely for non-commercial, but not freely for any commercial use)



Propane Frigerated Tank, Double Wall Storage Tank, Propane Tank, Roof Platform, Rafter, API 620, STAAD Pro

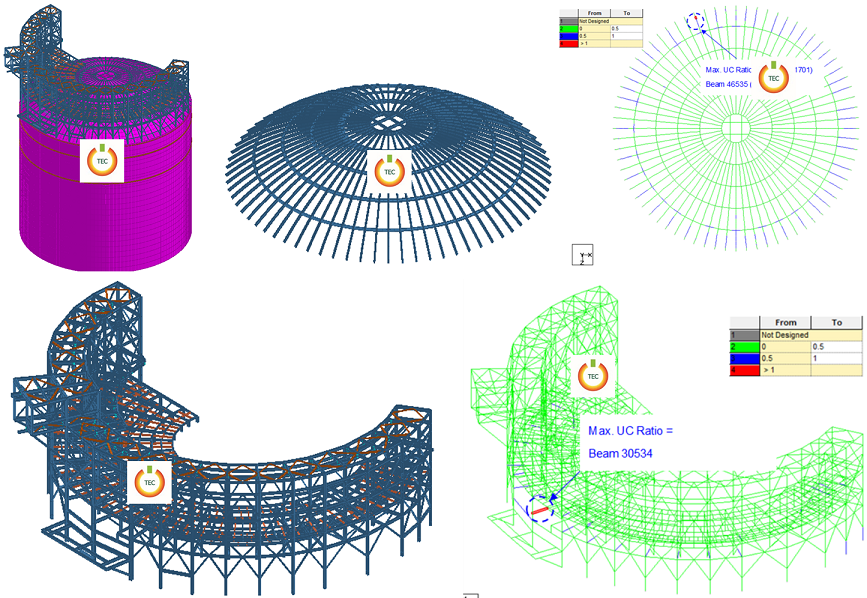

This report contains the structural analysis results of  roof  structure(Rafter, Ring Girder, Platform) for PROPANE REFRIGERATED TANK.  The structural analysis for roof structure has been performed with design load conditions in API 620 and applicable standards for steel structure using STAAD Pro.​
